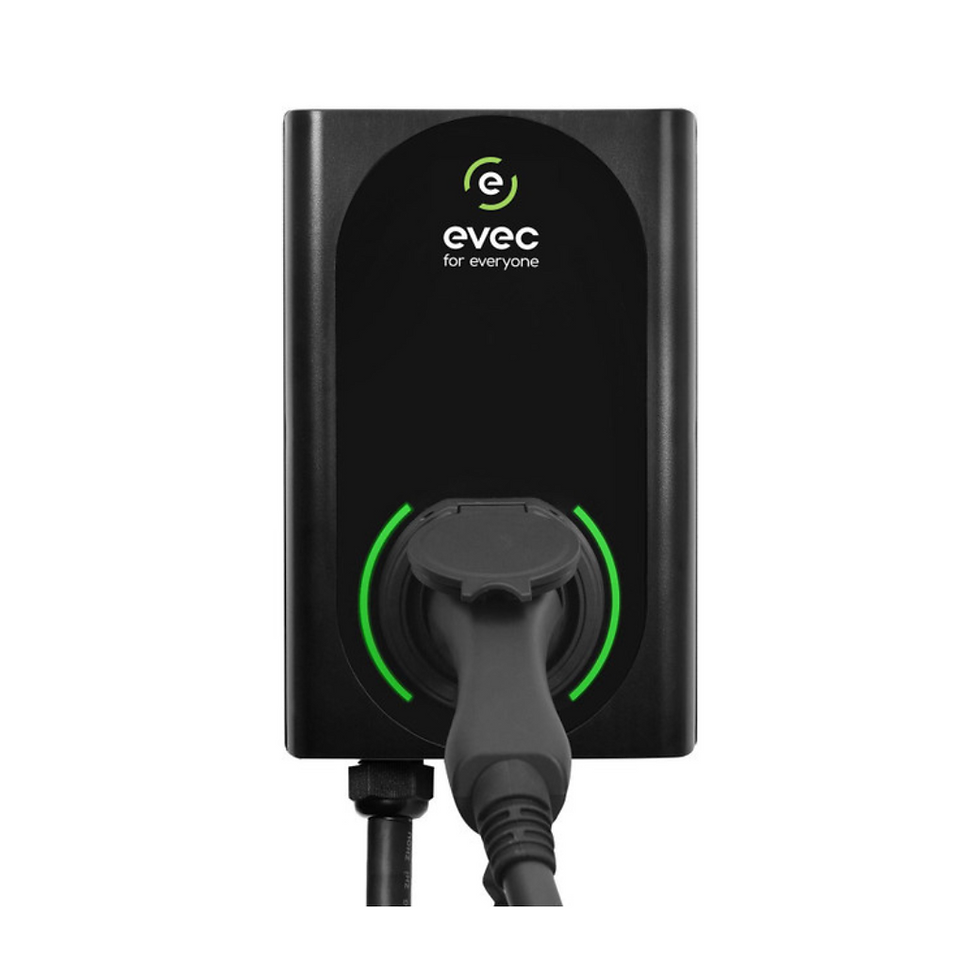

Key Features of EVEC VEC01 7kW EV Charger Include:

​

• 7kW Smart EV charger

• Untethered, Universal Type 2 Socket

• Compatible with Type 1 & Type 2 EV & PHEVs

• Bluetooth & WiFi Connectivity

• Smart App Compatible – Set Charging Schedules, Monitor Usage, View Charging Status & Control Power to Charger

• LED Indicator Displays Charging Status & Errors for Ease of Use

• Built-In PEN Protection

• Load Balancing

• Full OCPP 1.6J Protocols

• Adjustable Power Settings of 3.7kW or 7.4kW to Suit Requirements

• Rated Voltage: 220-240V

• Rated Current: 32A

• Ambient Operating Temperature: -25°C to 50°C

• IP Rating: IP54

• Corrosion-Resistant & Fire Retardant

• Dimensions (HxWxD): 300x190x105mm

• Weight: 1.8kg

• CE & UKCA Approved

• Warranty: 3 Years

• Charging rate: 7.4kW (32A, Single phase)

• Connector type: Tethered cable 5/8m

• Cable type: Type 2

• Cable length: 5m

• In-built PEN fault device

• In-built load management set through the unit

• RCD Type A with 6mA DC

• Connectivity: GSM (Sim card)

• Controlled via App or interactive screen

• LCD screen

• Weather rating: IP55

• Dimensions: H170xW200xD100mm

• Warranty: 3 Years

• OZEV grant approved

• Charging rate: 7.4kW (32A, Single phase)

• Connector type: Socket

• Socket type: Type 2

• In-built PEN fault device

• Load management

• Protection: RCD Type A with 6 mA DC

• Overcurrent protection to be fitted separately

• Connectivity: 3G/4G GSM (Sim card)

• Controlled via App or interactive buttons

• CT Clamp Incl

• Weather rating: IP55

• Weight: 1.5kg

• Dimensions: H230xW140xD100mm

• UKCA marked

• Warranty: 3 Years

• Compact size meets powerful performance and advanced intelligence to make EV charging fast and simple

• Connect Pulsar Max to any smart device via Wi-Fi or Bluetooth and use the myWallbox app to control charger

• Schedule charging sessions that take advantage of off-peak energy rates, monitor your charger status, and more through the myWallbox app

• Designed for indoor or outdoor installation and backed by a 3 year warranty

• Integrated PEN fault protection means no earthing rod necessary

Introducing Evec’s Dual Wall Mounted Charger – the ultimate solution for businesses and households embracing the electric revolution. This innovative charger features both a Type 2 cable and a universal socket, providing unparalleled flexibility for all your charging needs.

​

Designed to future-proof your home, the EDC01 powerfully splits its 7.4kW output between two vehicles; When just one vehicle is plugged in, the full 7.4kW charge is dedicated to that car, optimising charging efficiency.

• 7.4 kW charge for one vehicle

• 3.7kW charge for two vehicles

• Universal charging port plus a Type 2 Cable and connector

• Cost-effective and compact

• Built-in LED lights for both charging methods that display charging status and error messages

• Built-in PEN Protection

• Full OCPP 1.6J protocols including smart charging

• Load Balancing

• Evec App

• Corrosion resistant and fire retardant

• IP54 rated dust and weatherproof

• CE and UKCA approved

• Fully compliant with The Electric Vehicles (Smart Charge Points) Regulations 2021, including Schedule 1

• WiFi or 4G connectivity and OTA updates

• 3 years of 4G data included*

• Ready for commissioning onto the ev.energy app (license included)

• Full Smart! functionality – OCPP 1.6J connectivity

• Dynamic charging – up to 7.4 kW

• No earth rod required – integrated open PEN conductor protection

• Safe – integrated earth fault protection (RCD) + PEN protection system

• Tethered connection with 7.5m of cable and Type 2 connector

• 3-year warranty as standard

• Integrated open PEN conductor protection [no need for earth rod]

• Fully dynamic charging power 1.4 – 7.4kW

• Load balancing of up to 101 units per fuse by integrated wireless communication

• Automatic queuing system

• Integrated eSIM in each box [lifetime free subscription]

• Permanent locking of the Type 2 cable

• Universal, fits all types of electric cars

• Full control with the Easee app or local Wi-Fi interface and open API

• Tethered or untethered at the click of a button

• Fitted with an anti-tamper device

• 3 charging modes eco, eco+ and fast

• Optimises micro-generation self consumption

• Economy tariff sense input

• EV charging from surplus solar or wind generation

• Programmable timer function

• Charge and event logging

• Pin code lock function

• Dynamic load balancing for maximum installation flexibility

• OZEV approved

• Ethernet port and built-in Wi-Fi for connecting to the internet

• Complete with latest software and tamper protection boundary
